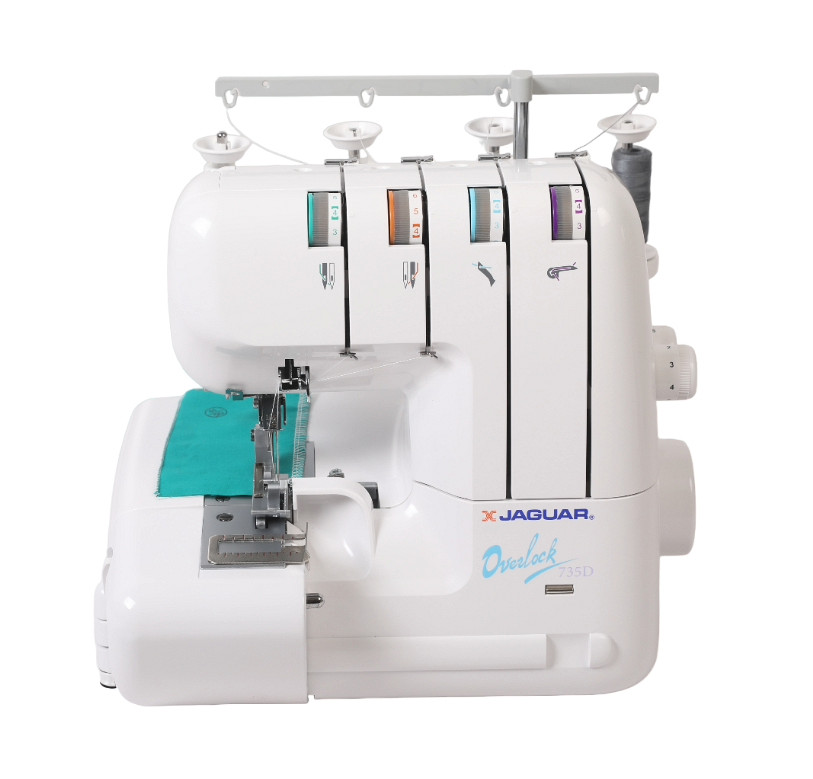

The Jaguar 735D Overlocker Serger Sewing Machine is a brilliantly engineered machine which can be used as either a 3 or 4 thread overlocker and is made by Jaguar to a high specification.
For more advanced overlocking, we highly recommend considering the Jaguar 935D Overlocker.
Versatile 3 or 4 Thread Overlocker, with Auto Tension Release, Differential Feed, Electronic Foot Control, Foot Pressure Regulator and a unique opening system for quick and easy threading with a colour-coded threading system!
You can thread this easythreading machine from start to finish in under 5 minutes including the loopers!
Up to 1,300 stitches per minute.
This overlocker comes with many outstanding features and high specification including electronic foot control, differential feed for control of the more challenging fabrics and a foot pressure regulator.
With this machine, you do not need to use the two needles and can still have a great overlocker stitch!
The Jaguar 735D will do 4 thread overlock and 4 thread safety seam overlock, 3 thread wide overlock, 3 narrow overlock and 3 thread rolled hem.
The overlock stitch is fully adjustable on the stitch length and the overedge cutting dial allows you to fine tune the edge of the overlock stopping the loops to hang of the edge or curl the edge.
A hidden blade at the back of the machine makes it quick and easy to cut your thread when finished stitching.
The main bonus with this machine is that the whole of front opens up, making it a lot easier to thread, sew the thread paths and to clean.
Everything you need to convert the overlocker to the different stitch variants is located on the inside of the drop-down front.
The differential feed allows you to offset the stretch in your fabric, so you can get the straightest overlock edge even on the trickiest stretch fabric.
Whether you are sewing fine silk or stretchy Lycra, this overlocker has the ability to give you a professional edge finish as well as a twin needle facility for a strong, sturdy edge.
Features and Specifications:
Open Front Thread System
Cord Guide
Foot Pressure Regulator
Sewing Light: LED light, 1.0watt
Presser Foot Lever
Thread Cutter
Needle Plate
Over-edge Cutting Width Dial: 4.5 - 7mm adjustable
Working Table
Thread Guide Pole
Left Needle Thread Tension Control
Right Needle Thread Tension Control
Lower Looper Thread Tension Control
Upper Looper Thread Tension Control
Thread Tension Release
Needle Thread Guides
Thread Cutter Lever
Two Thread Converter Instruction
Threading Chart

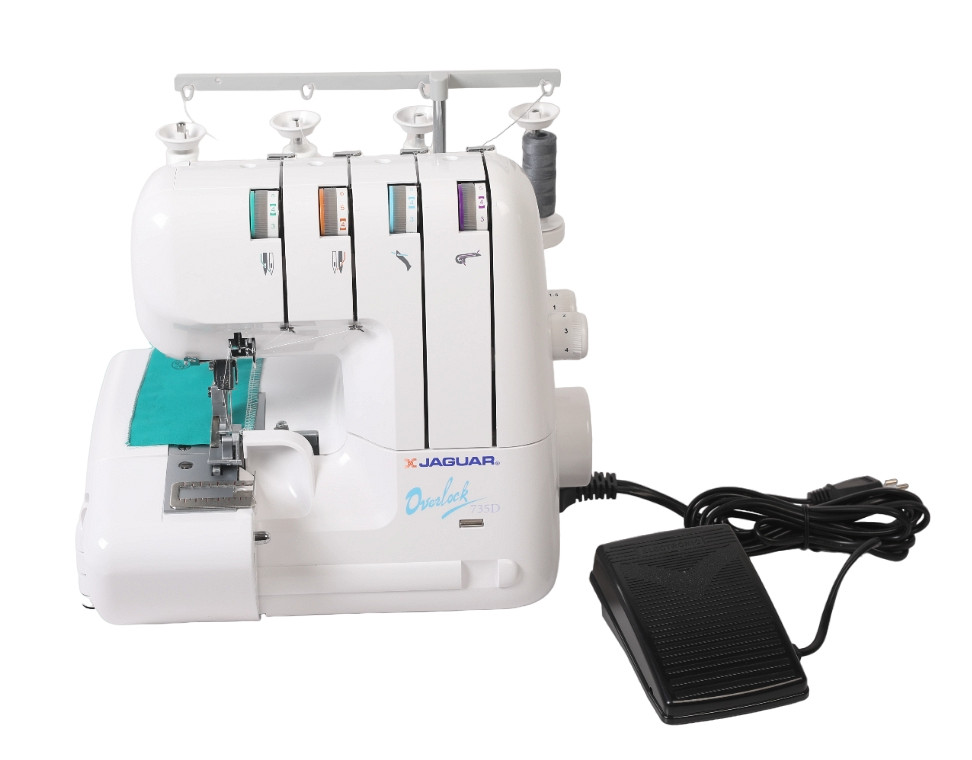

Foot Control
Release Lever
Foot Release Lever
Spool Disc
Stitch Length Dial
Differential Feed Control Lever
Hand Wheel
Plus Connector Socket
Light and Power Switch
Front Cover
Moving Cutter
Upper Looper
Weight: 8.5kg
Stitch Length 1-5mm
Up to 1,300 Stitches per Minute
4 Thread overlock
3 Thread wide overlock
3 Thread narrow overlock
3 Thread rolled hem
Machine Size: H 28cm x W 32cm x D 32cm
Carton Dimensions: H 36cm x W x 39cm x D 32.5cm
Voltage: 220-240V/50Hz/111W
Max Speed: 1200±120/rpm
Foot Controller: Electronic F/C 230V
Switch: Power and light switch combined
Safety Equipment (on front cover)
Knife Drive Mechanism: Lower drive
Cutter Driving Unit: Completely open
Stitch Length: 1-5mm (standard 3mm)
Stitch Length Control: Dial on side cover
Thread Tension Dial: 4 lay-in tensions
Auto Tension Release
Needle Type: Household, HAx1
Presser Foot: Snap-on
Pressure Regulator: By dial
Handle
Thread Diagram: Colour-coded
Spool Stand: One piece rod
Number of Spool Pins: 4
Differential Feed: Dial on side cover
Number of Needles: 1/2
Number of Threads: 3/4
Accessory Storage
Stitch Finger: 2 pcs (small & medium)
Instruction Manual

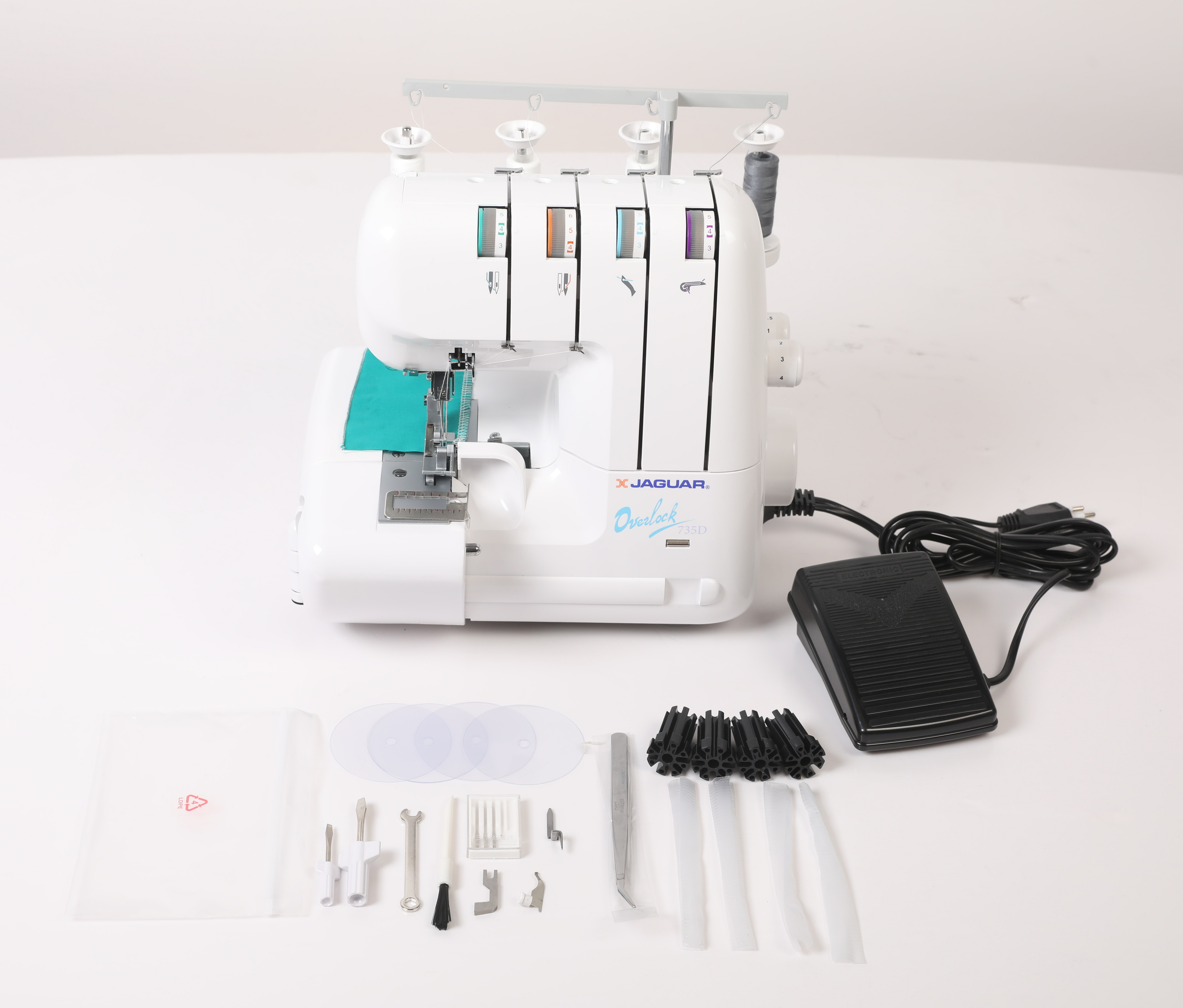

Accessories included:
4 cones/reels of white starter overlocker thread
*4 REELS OF STARTER THREAD*
